MALLINCAM B&W HYPER SPECIFICATIONS |
|
| POWER SUPPLY |
12 VOLT DC Regulated at 435ma with Peltier Cooler and Integration ON |
| OPERATIONAL TEMPERATURE |
-31 C to 52 C ( -23 F to 125 F) |
| OPERATIONAL HUMIDITY |
<90% RH |
| GAMMA CORRECTION |
0.45 AND 1.0 Adjustable by OSD |
| VIDEO OUTPUT |
1.1 Volt, P-P at 75 Ohms |
| GRAY SCALE BAR GENERATOR |
Selectable by OSD |
| HIGH LIGHT SUPPESSOR |
Selectable by OSD |
| IMAGE ENHANCE MODE |
Vertical and Horizontal Selectable by OSD |
| RS-482 |
Mini DIN Connector - 8 Pin |
| IMAGE FREEZE |
Selectable by OSD or Remote Via RS-482 (Up to 128X SENSE Only) |
| AGC (GAIN) |
ON, OFF, or Manual - Selectable by OSD |
| MASKING AREA |
Selectable by OSD |
| NEGATIVE IMAGE SELLECTION |
Selectable by OSD |
| REVERSE IMAGE SELLECTION |
Selectable by OSD |
| DIGITAL ZOOM |
2X MAX Selectable by OSD (16 Steps) |
| BLC SELECTION |
Selectable by OSD |
| IMAGE MIRROR FUNCTION |
Selectable by OSD |
| ELECTRONIC SHUTTER |
1/60th to 1/12,000 Second |
| S/N RATIO |
65 dB with AGC OFF |
| GAIN CONTROL |
0 to 20 DB (AGC) |
| RESOLUTION |
600 Lines (Tested at 760 Lines) |
| LUX at F/1.4 STANDARD MODE |
0.00002 @5600K 30 IRE |
| LUX at F/1.4 HYPER MODE |
0.000000000003 @5600K 30 IRE |
| LUX with PELTIER ON STANDARD MODE |
0.00001 @5600K 30 IRE |
| LUXwith PELTIER ON HYPER MODE |
0.000000000001 @5600K 30 IRE |
| SCANNING SYSTEM |
525 Lines, 60 fields per second |
|
|
| CCD SENSOR SPECIFICATIONS |
| CCD SENSOR SPECIFICATIONS |

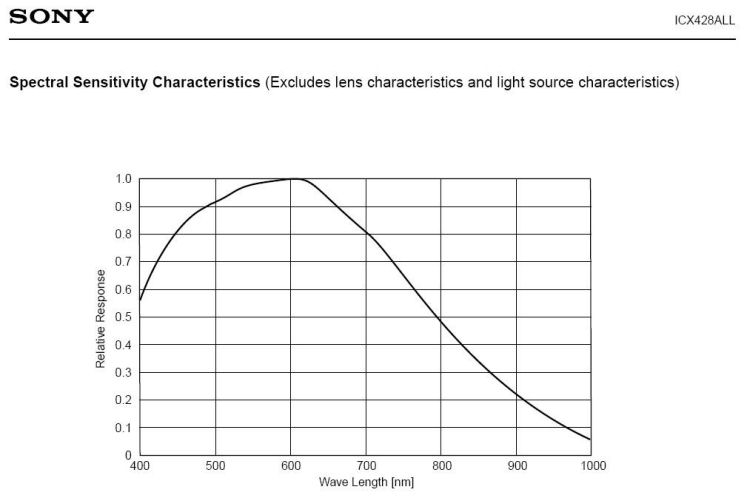

ICX 428 ALL-A (Astronomical Grade Class 1) Monochrome |
| CCD SENSOR TYPE |
EXview HAD CCD with MicroLens Pixel Technology |
| IMAGE SIZE TYPE |
1/2 Inch |
| SYSTEM |
EIA or CCIR |
| TOTAL PIXELS |
811H X 508V (410K Pixels) |
| EFFECTIVE PIXELS |
768H X 494V (380K Pixels) |
| SENSITIVITY |
1,400 mV (Tested at Shutter Speed of 1/250th Second at Center Screen) |
| UNIT CELL SIZE |
8.4H x 9.8V |
| CHIP SIZE |
7.40mm H X 5.95mm V |
| PACKAGE |
Ceramic-DIP |
| SUBSTRATE MATERIAL |
Silicon |
|
|
